Description
General Specifications
- Input Voltage: AC 220V ± 10-15%, 50/60Hz (Single Phase)
- Output Current Range: 20A up to 400A.
- Duty Cycle: 60%
- No-Load Voltage: Typically ranges from 60V to 75V.
- Electrode Size: Suitable for electrodes ranging from 1.0 mm to 5.0 mm
- Efficiency: Around 85%.
- Power Factor: 0.93.
- Protection Class: Usually IP21S.
- Weight: 4.6 kg
- Dimensions: 415 x 160 x 310 mm
Specific Features in "Smart" Welders:
- Hot Start: Assists in easy arc ignition.
- Arc Force: Prevents electrode sticking during welding.
- Anti-Stick: Further reduces the chance of the electrode sticking.

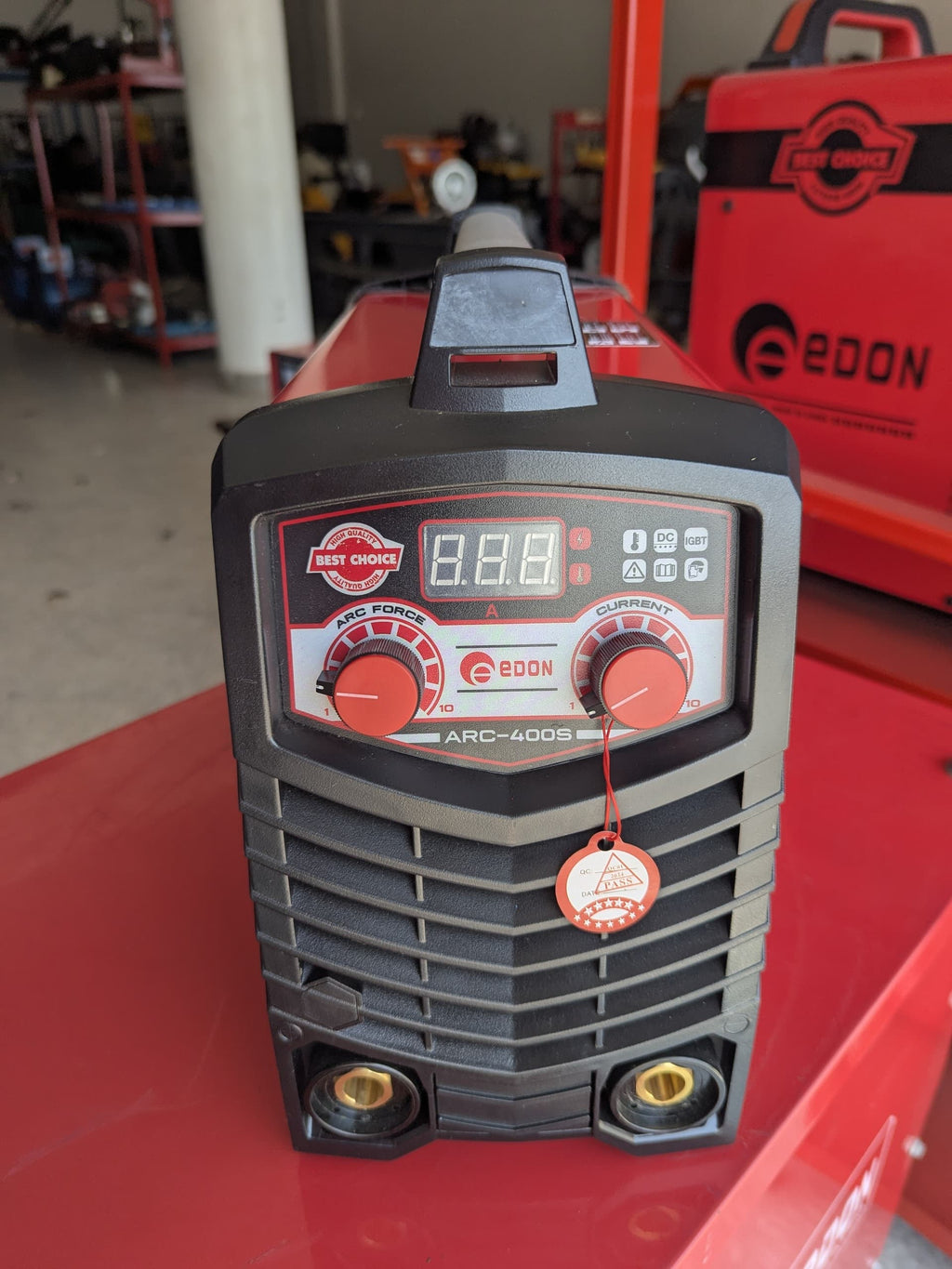

- Digital Display: For precise current adjustment.
- Overheat and Overcurrent Protection: Protects the welder from damage.
- Voltage Fluctuation Compensation: It offer stable welding even with voltage variations.
