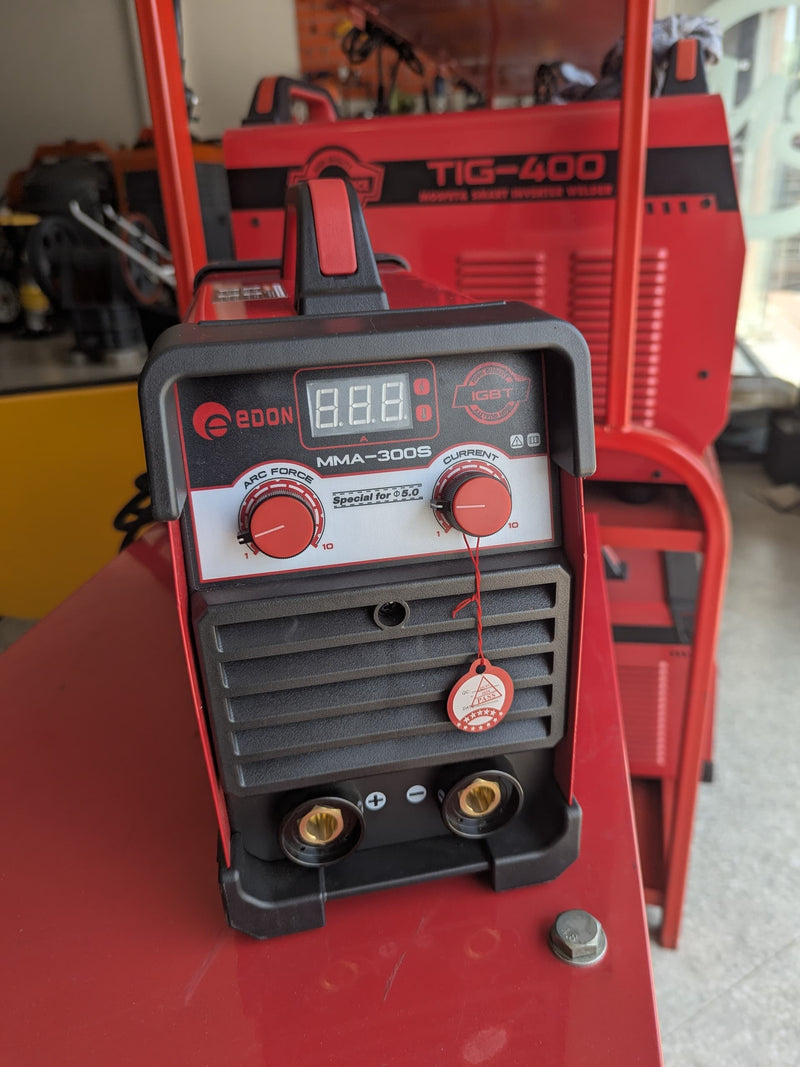

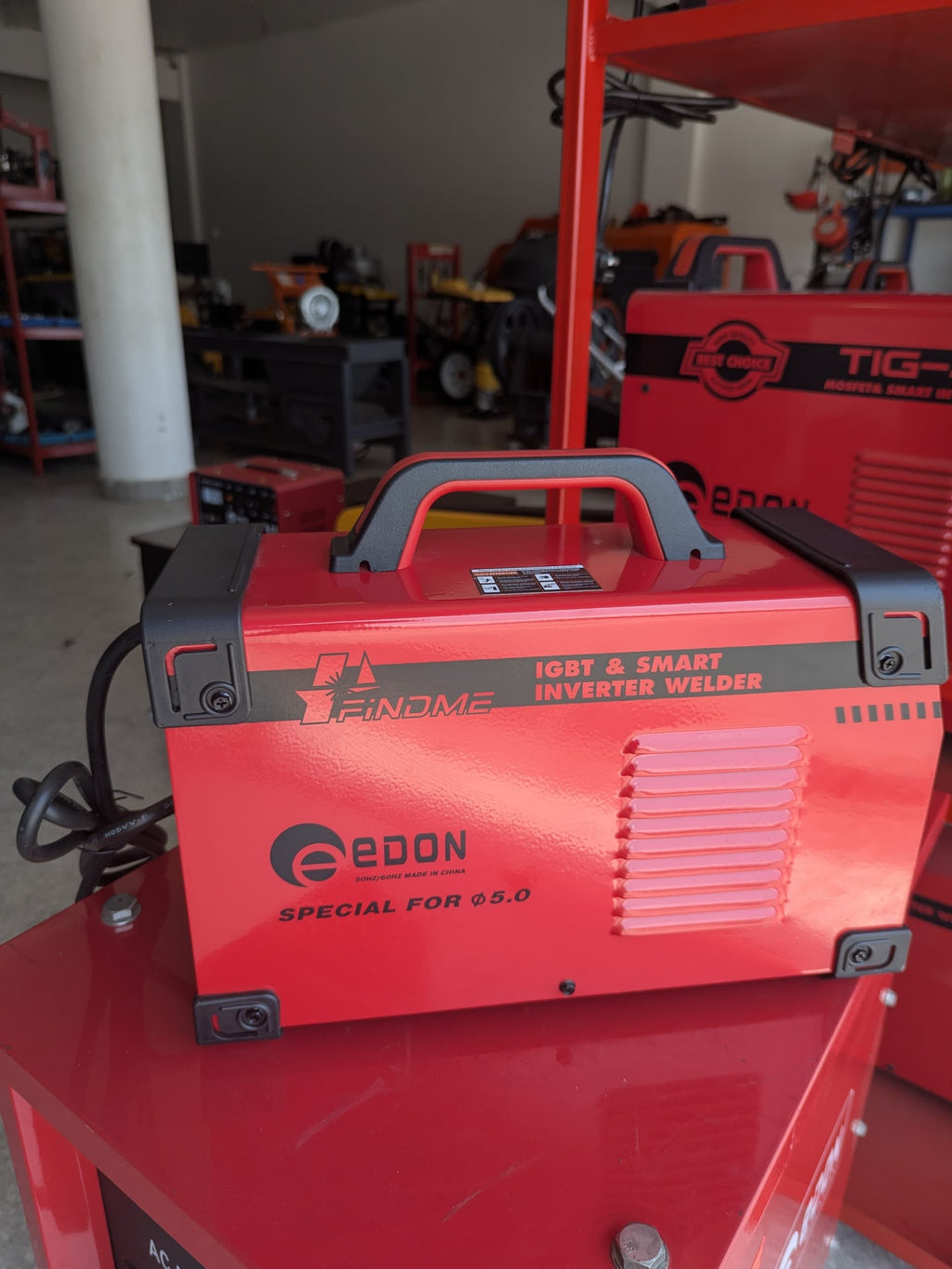

EDON MMA 300S IGBT WELDING MACHINE
General Specifications:
-
Technology: IGBT Inverter
-
Welding Process: MMA/ARC (Stick)
-
Input Voltage: AC 220V ± 10-15% (Single Phase)
-
Frequency: 50/60 Hz
- Output Current Range: Typically 20-180A or 20-200A
-
Duty Cycle: Often around 60% at the maximum stated amperage.
- No-Load Voltage: Around 59V - 65V.
- Rated Input Current: Approximately 41A - 54.5A.
- Input Power: Around 9 KVA - 11 KVA.
- Suitable Electrode Diameter: Typically 1.6mm - 4.0mm or 1.6mm - 5.0mm.
-
Welding Thickness: Can generally weld materials up to 5mm thick.
- Efficiency: Around 80-85%.
-
Power Factor: Approximately 0.73.
- Protection Grade: IP21S or IP21.
- Insulation Class: Class F.
-
Weight: Around 4.6 kg - 8.5 kg (lightweight and portable).
- Dimensions: Compact, with approximate dimensions around 340mm x 150mm x 280mm or 430mm x 175mm x 325mm.
Key Features:
-
IGBT Inverter Technology: Ensures a stable arc, efficient power use, and a compact design.
-
Hot Start: Facilitates easy arc ignition.
-
Anti-Stick: Prevents the electrode from sticking to the workpiece.
-
Arc Force: adjustable arc force for better weld penetration and preventing electrode sticking.
-
Digital Display: It feature a digital ammeter for precise current setting and monitoring.
-
Overheat Protection: Protects the machine from thermal overload.
-
Overcurrent Protection: Safeguards the machine from excessive current.
-
Fan Cooling: Built-in fan for efficient heat dissipation.
-
Portable: Lightweight design and often comes with a carry handle for easy transportation.
-
Suitable for Various Electrodes: Designed for welding mild steel, stainless steel, and cast iron with different types of electrodes (rutile, basic, etc.).
Package Contents (Typical):
- Welding Machine
-
Electrode Holder with Cable
-
Earth Clamp with Cable
- Welding Mask
- Wire Brush
- User Manual
