Description

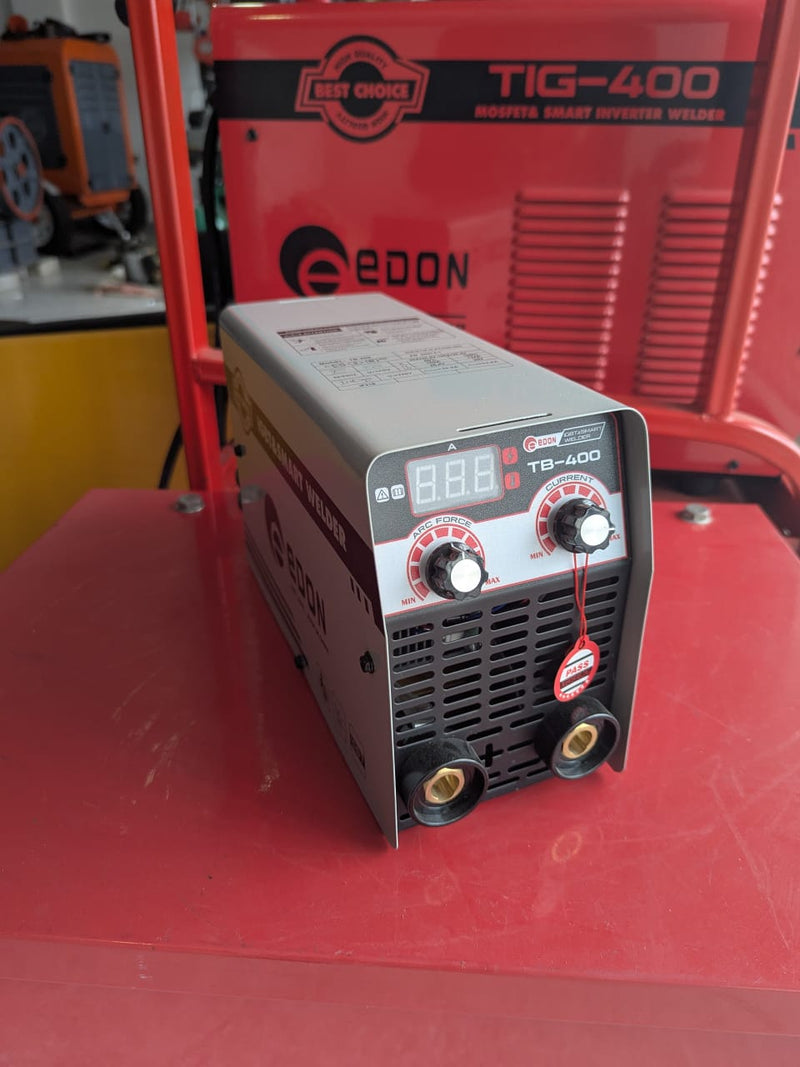

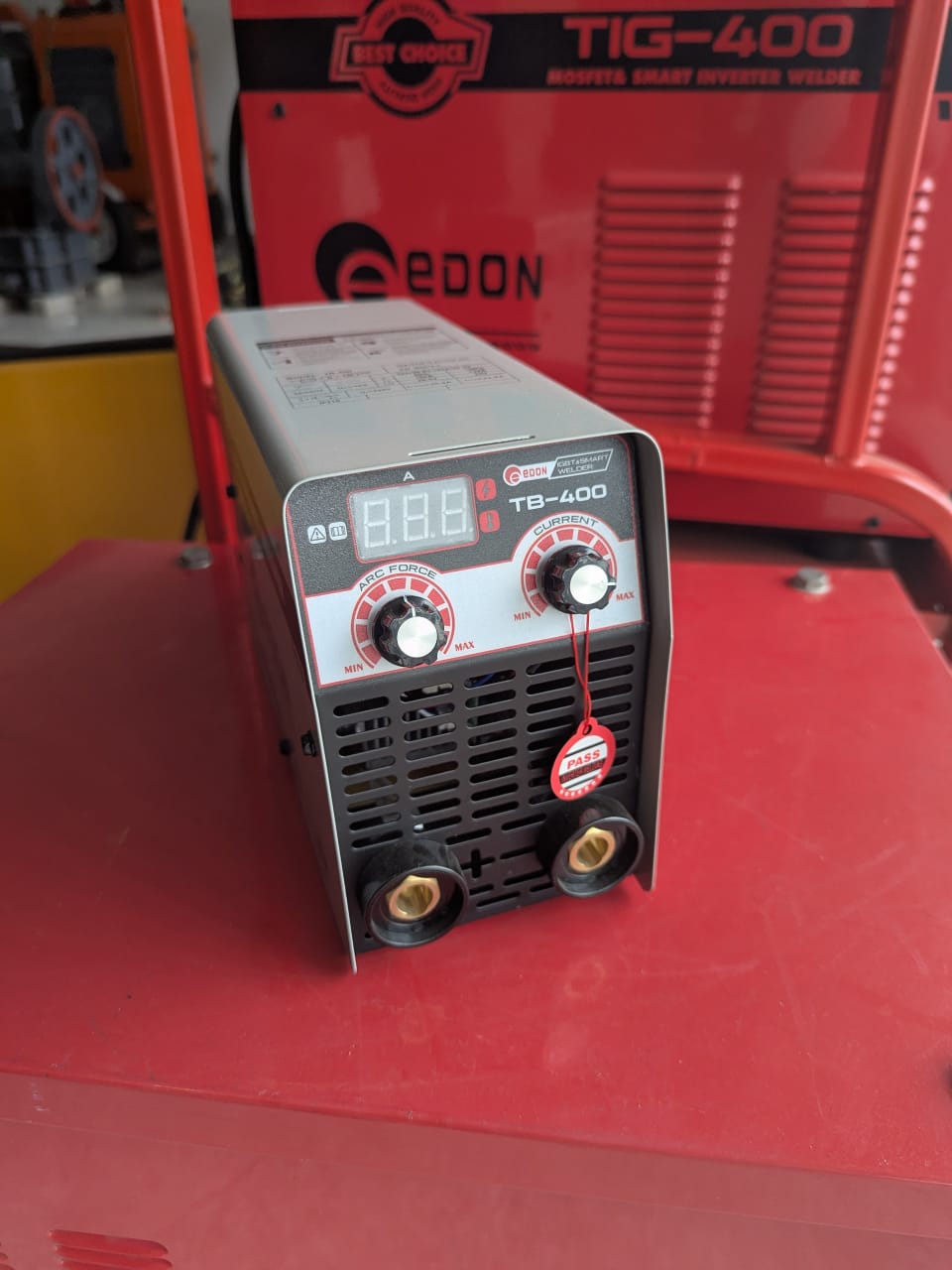

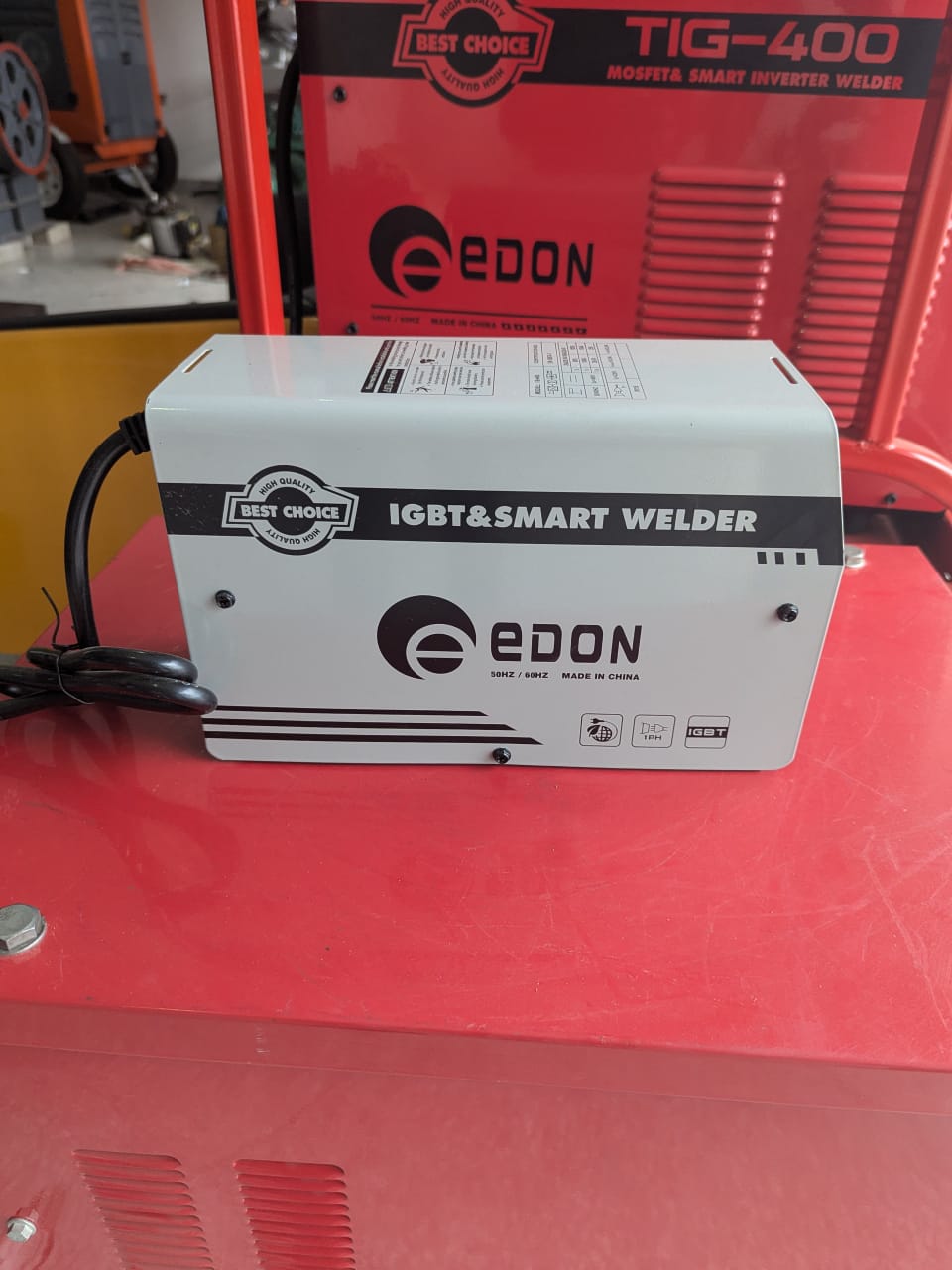

EDON TB 400 IGBT & SMART WELDER GENERAL FEATURES
-
Type: Inverter
-
Technology: IGBT
-
Welding Type: MMA (Manual Metal Arc) / ARC / Stick welding
-
Portable: Yes
-
Single-phase: Yes
-
Fan-cooled: Yes
-
Movable welding cable: Yes
-
Thermostatic protection: Yes
-
ARC force function: Yes
Electrical Specifications:
-
Input Voltage: AC 220V ± 15%, 50/60Hz
- Input Current: 26.2 A
- Input Capacity: 5.8 KVA
- Rated Output Voltage: 100V / 24V
- Welding Current Range: 20-140 A
- No-load Voltage: 60V
-
Rated Load Duty Cycle: 60% @ 40°C
-
Efficiency: 85%
-
Power Factor: 0.73
-
Protection Class: IP21S
Welding Capacity:
- Electrode Size: 1.0-3.2 mm or 1.6-3.2 mm
- Suitable for welding steel, stainless steel, and iron.
Physical Specifications:
-
Machine Size: 245 x 105 x 115 mm or 300 x 125 x 190 mm )
- Weight: 4.7 kg
Additional Features:
- Hot Start
- Anti-Stick
Included Accessories
- Welding mask
- Electrode holder with cable
- Ground clamp with cable
- Protective shield
- Iron brush
