Description

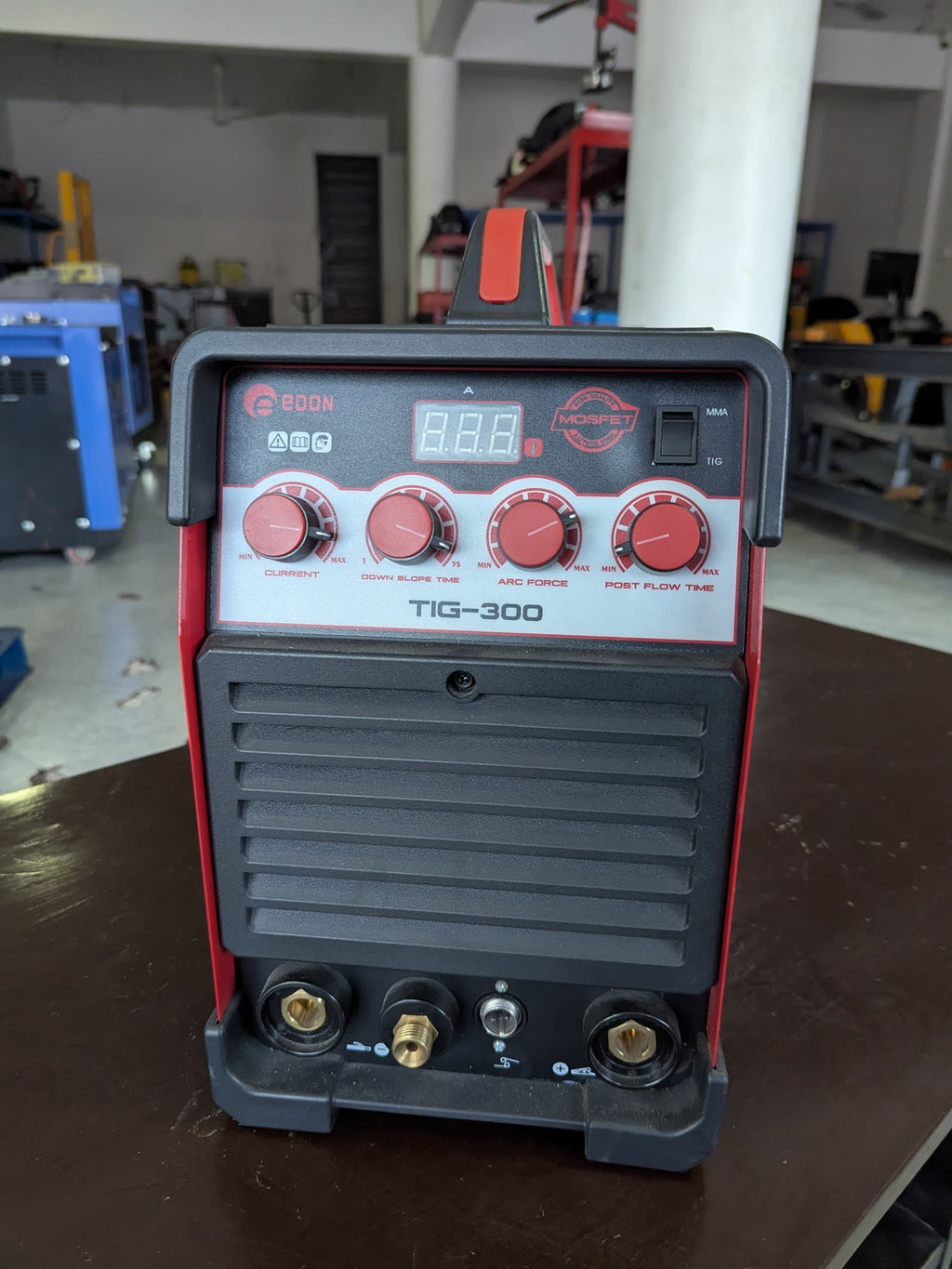

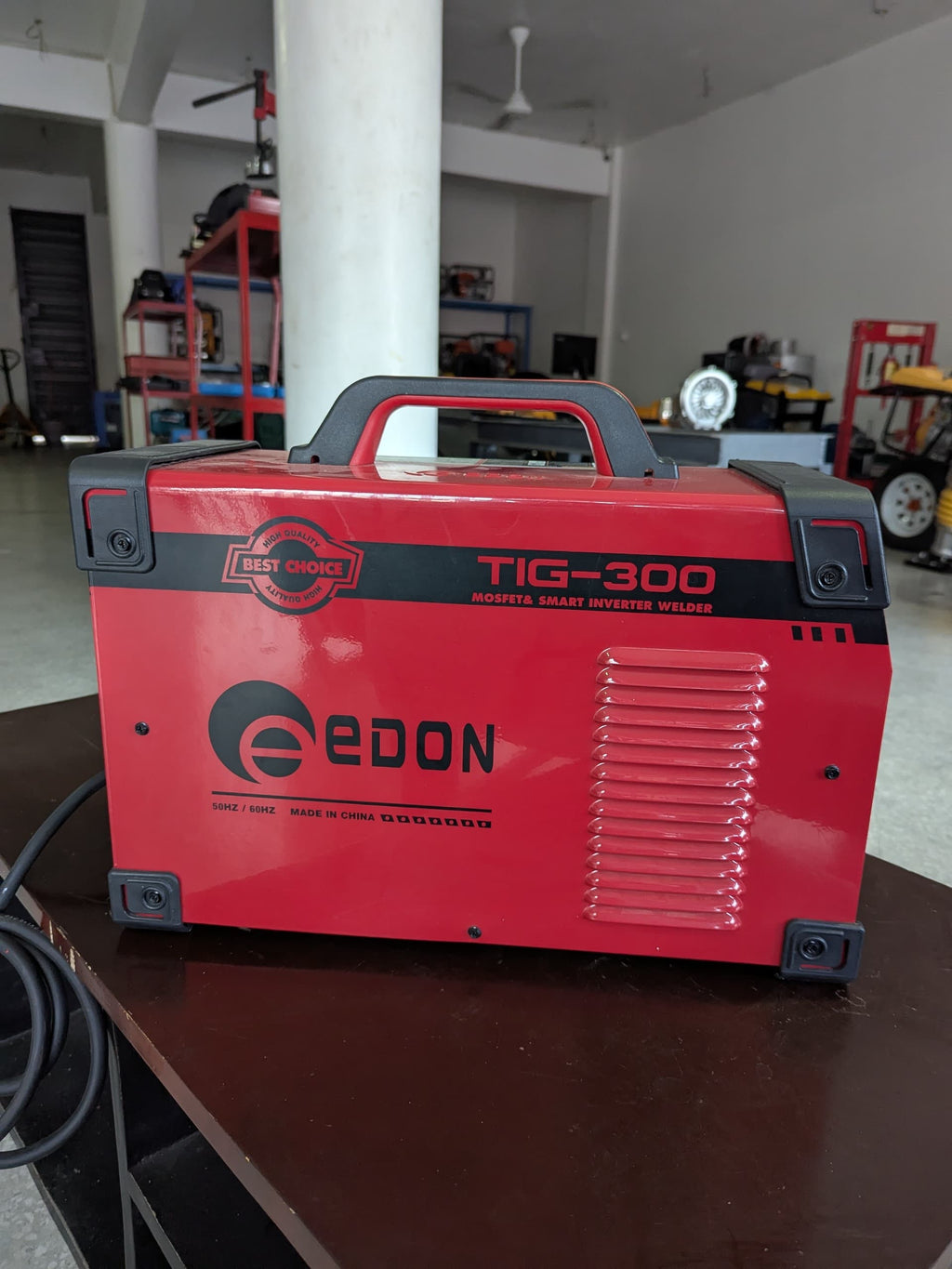

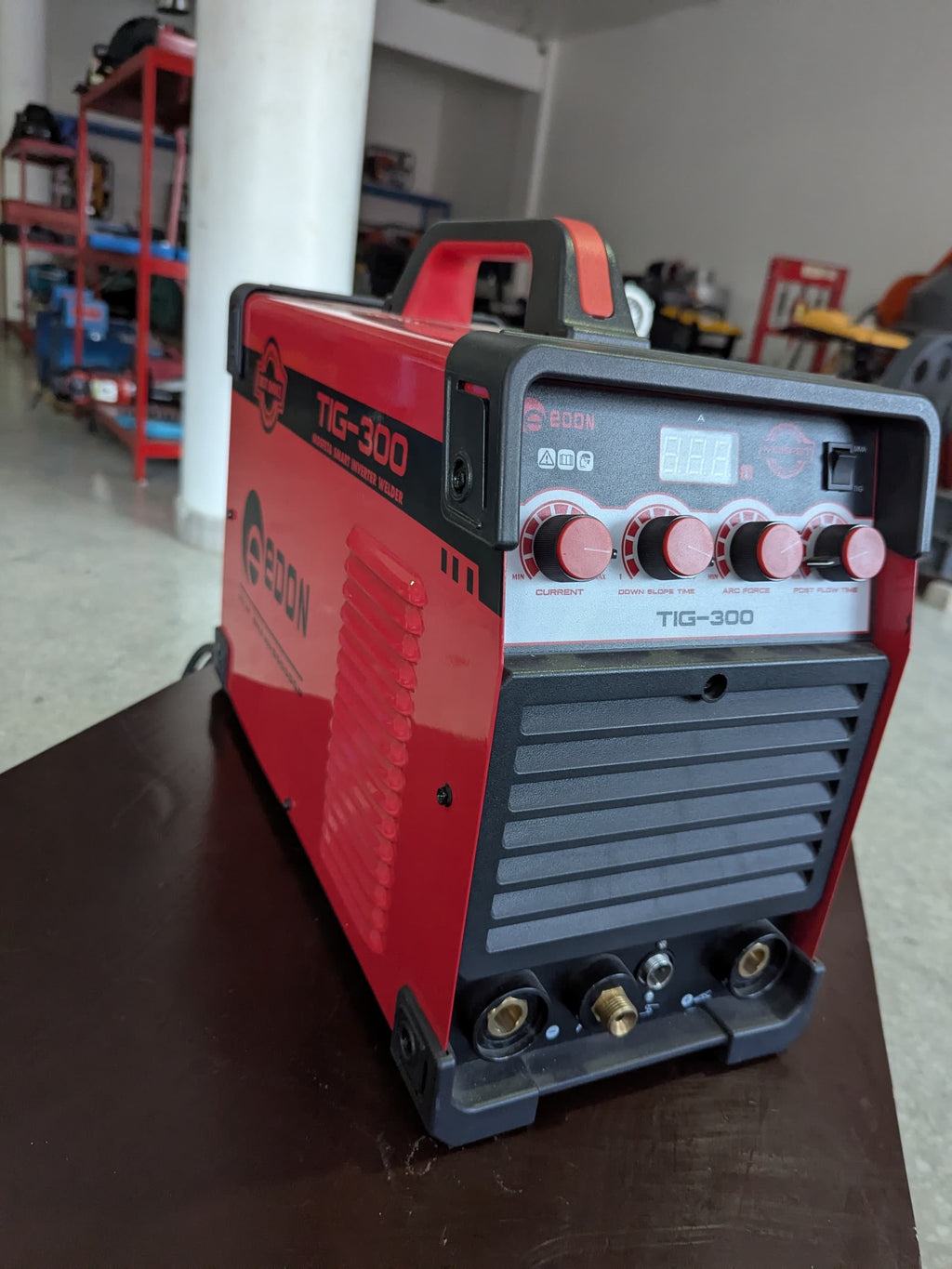

EDON TIG 300 MOSFET & SMART INVETER WELDER
- Technology: MOSFET Inverter
- Welding Type: TIG (GTAW) and MMA (SMAW/Stick)
- Input Voltage: AC 220V (Single Phase) ± 15%, 50/60Hz
- Rated Input Power Capacity: 4.5 - 5.8 KVA
- Output Current Range (TIG): 10 - 230 A
- Output Current Range (MMA): 10 - 210 A
- Rated Output Voltage (TIG): 18V - 24V
- No-load Voltage: 56V or 61V
- Duty Cycle: 60%
- Efficiency: 85%
- Power Factor: 0.93
- Electrode Size (MMA): 1.6 - 5.0 mm
- Preflow Time: 1s - 10s
- Post-flow Time: 0s - 5s
- Down Slope Time: 0s - 5s
- Arc Starting: High Frequency (HF) for TIG
- Protection Class: IP21S
- Weight: 9 kg
- Dimensions: 390 x 160 x 300 mm
- Suitable for welding: Mild steel, stainless steel, alloyed steel, titanium, and other metals.
- Features: Over-voltage protection, under-voltage protection, over-current protection, overload protection, portable.
